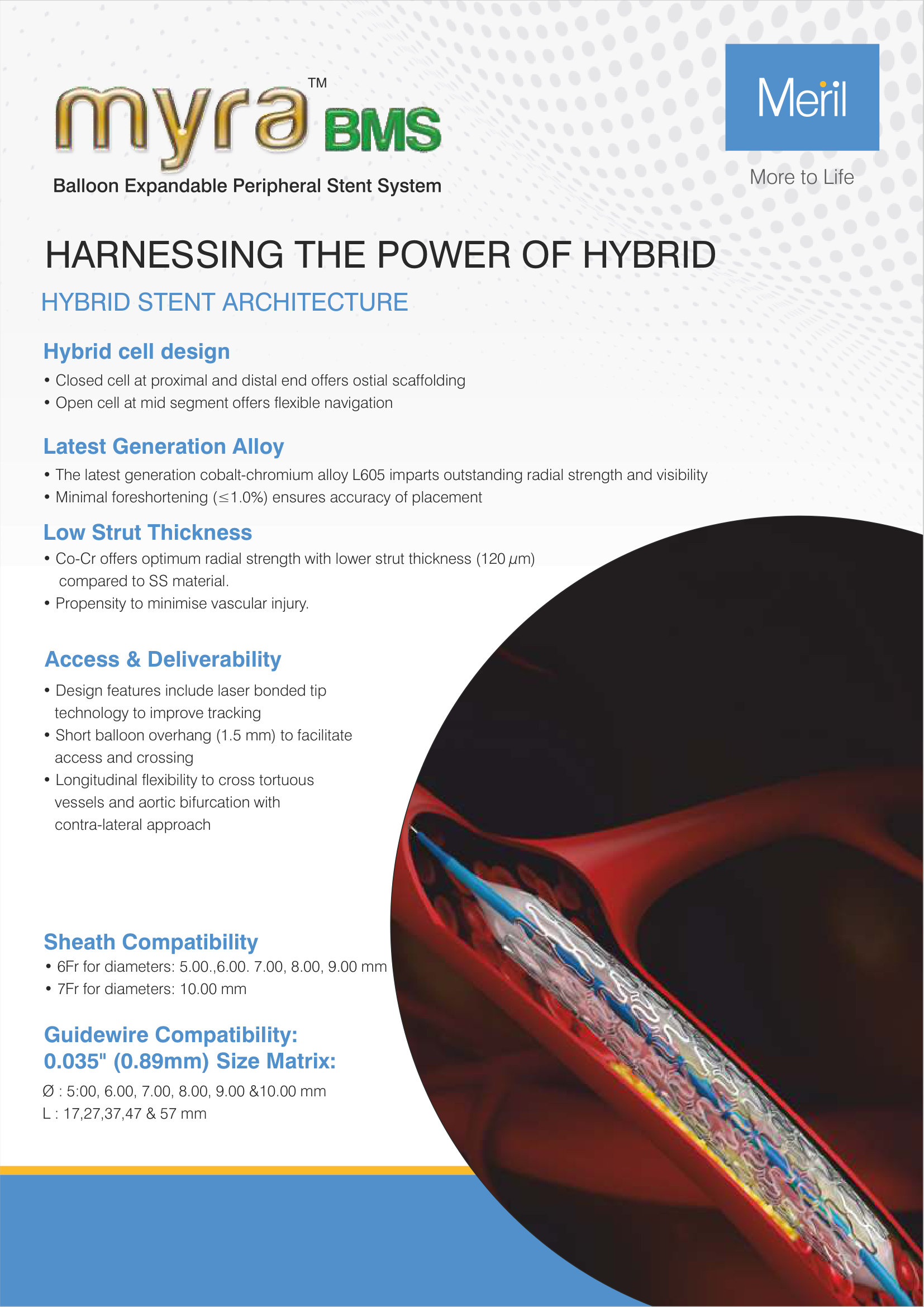

Myra BMS Bare Metal Stent
Hybrid Cell Cobalt-Chromium Coronary Stent with Laser Bonded Tip Technology
Coronary StentsMeril Life Sciences
Hybrid cell design bare metal stent with closed cells at proximal and distal ends for ostial scaffolding and open cells at mid segment for flexible navigation. Features latest generation cobalt-chromium alloy L605 with laser bonded tip technology.
Product overview
Hybrid cell design bare metal stent with closed cells at proximal and distal ends for ostial scaffolding and open cells at mid segment for flexible navigation. Features latest generation cobalt-chromium alloy L605 with laser bonded tip technology.
Technical specifications
| stent material | Cobalt Chromium L605 |
| strut thickness | 120 µm (0.120 mm) |
| stent diameters mm | 5, 6, 7, 8, 9, 10 |
| stent lengths mm | 17, 27, 37, 47, 57 |
| mean recoil | <4.0% |
| mean foreshortening | ≤1.0% |
| delivery system | Over-the-wire (OTW) 0.035" |
| nominal pressure | 8 - 10 atm |
| rated burst pressure | 11 - 14 atm |
| balloon overhang | 1.5 mm |
| shaft outer diameter | Proximal-5 Fr |
| balloon material | Polyamide - Semi Compliant |
| radiopaque markers | 2-Platinum Iridium swaged radiopaque markers |
| usable catheter length | 80 cm, 135 cm |
| min sheath compatibility | 6Fr for diameter: 5.00-9.00 mm, 7Fr for diameter: 10.00 mm |
| max guidewire compatibility | 0.035" (0.89 mm) |
Clinical scope
Procedures
- • Percutaneous Coronary Intervention
- • Coronary Angioplasty
- • Coronary Revascularization
Anatomical focus
- • Coronary Arteries
- • Native Coronary Vessels
Indications & use cases
Bare Metal StentHybrid Cell DesignOstial ScaffoldingFlexible Navigation120 µm StrutOver-The-Wire Delivery0.035 inch Guidewire CompatibleLarge Vessel Stenting
